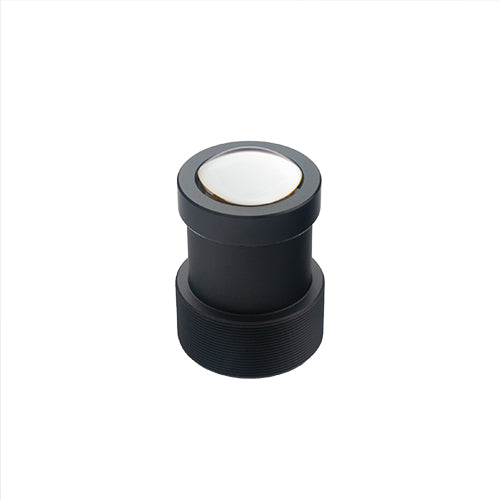

AB12840MG 8K Lens for 1 inch sensors, f=12.78mm, F4.0
8K lenses, refers to lenses that can reach 20MP and above. Alaud 8K series have clear images, high color reproduction and rich image details. With compact lens design and excellent optical performance, high resolution and high contrast can be maintained from the center to the edge of the image. Mainly used in video conferencing, aerial photography of drones, etc.
The 8K lens AB12840MG from Alaud is compatible with board cameras over 20MP. This 8K lens has a 12.78mm focal length and delivers a 54.6° horizontal field of view at the image height of 16.6mm.
Optical Specifications
|
Alaud 8K lens AB12840MG |
|
|
Description |
8K lens |
|
Imager Format |
1" |
|
Focal Length |
12.78mm |
|
Relative Aperture (F/#) |
4 |
|
Max Image Height |
16.6mm |
|
Horizontal Field of View |
54.6° |
|
TTL |
33.0mm |
|
Chief Ray Angle |
14.93° |
|
IR cut filter |
Optional |
Key Features
• High resolution for 20MP
• Sharp image quality from center to edge
• 12.78mm fixed focal length
• 54.6° HFOV
• Compatible with 1/4"-1" format sensors
• All glass elements provide environment stability.
Applications
• Video conferencing camera
• Aerial photography (Unmanned aerial vehicle) (Drone)
