A fisheye lens is an ultra wide angle lens that produces strong visual distortion intended to create a wide panoramic or hemispherical image.

Alaud has a series of fisheye lenses. The products are designed to meet the high-definition surveillance requirements for large viewing angles in specific scenarios, such as shopping malls, sports venues, and traffic roads. They also fit the need in consumer electronics such as drones, professional sports cameras, video conferencing, and smart homes.

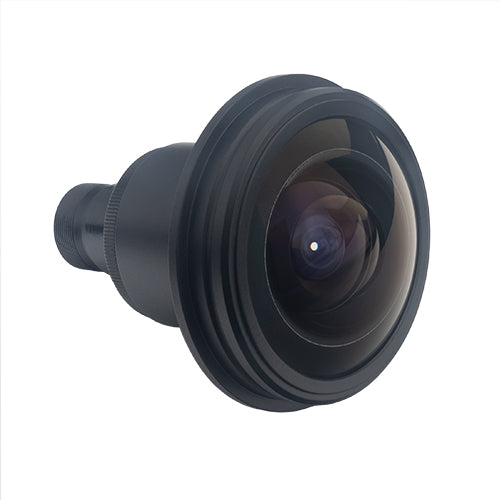

The all-glass fisheye lens ABFE01514 features an ultra-wide angle and high resolution. The lens has an imaging circle of Φ4.73mm. It is capable of forming drum fisheye images or circular fisheye images on sensors of 1/3" and larger, providing a maximum field of view of 185°. When a smaller image sensor is used, a full frame fisheye image will be formed.

Optical Specifications

Key Features

•    Image circle: Φ4.73mm; FL=1.5mm

•    Wide FOV: 185°

•    Superior low light performance: F1.4 aperture

•    Compact size

•    Excellent control of color aberration

Applications

•    Video Conferencing

•    Smart Parking System

•    Sports Camera

•    Drone

•    Automotive

•    Smart home
