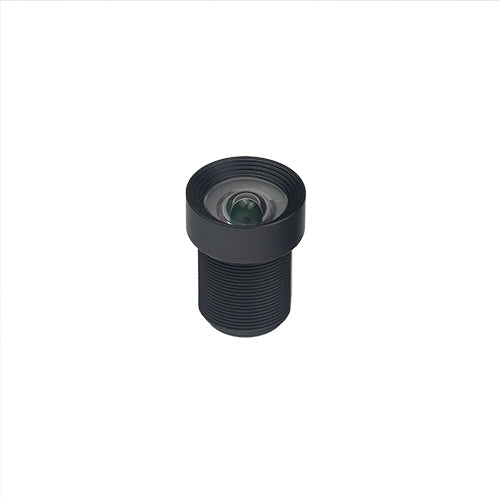

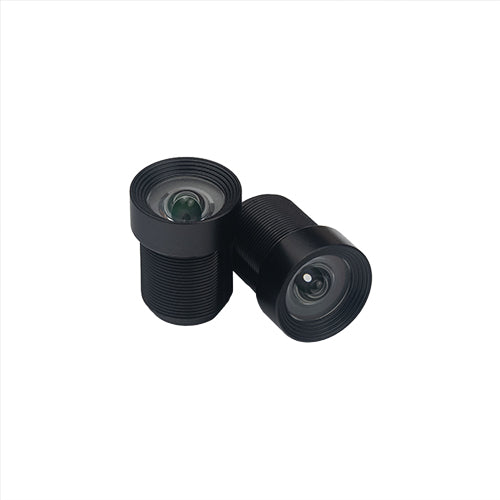

AD2530 Low Distortion Lens for 1/2.5 inch sensors, f=2.97mm, F4.2
Low-distortion lens are generally designed with aspheric surfaces, which have the characteristics of high definition and very low optical distortion.
Alaud has a series of low-distortion lenses. The products are designed to meet the requirements of low-distortion and high-definition imaging for a large field of view in some specific scenarios, such as scanning recognition, industrial recognition, face recognition, UAV and other consumer electronic products.
The low-distortion lens AD2530 from Alaud is compatible with board cameras over 5MP that on 1/2.5" format sensors. This lens has a 2.97mm focal length and delivers a 87.3° horizontal field of view.
Optical Specifications
|
Alaud low distortion camera lens AD2530 |
|
|
Description |
low distortion camera lens |
|
Imager Format |
1/2.5" |
|
Focal Length |
2.97mm |
|
Relative Aperture (F/#) |
4.2 |
|
Max Image Height |
7.5mm |
|
Horizontal Field of View |
87.3° |
|
TTL |
20.51mm |
|
Chief Ray Angle |
13.14° |
|
IR cut filter |
Optional |
Key Features
• High definition, low distortion lens
• 87.3° HFOV
• Compatible with 1/4"-1/2.5" format sensors
• 2.97mm fixed focal length
• Compact size
Applications
• Barcode scanner
• QR code scanner
• Passport reader
• Document scanner
• ID card reader
