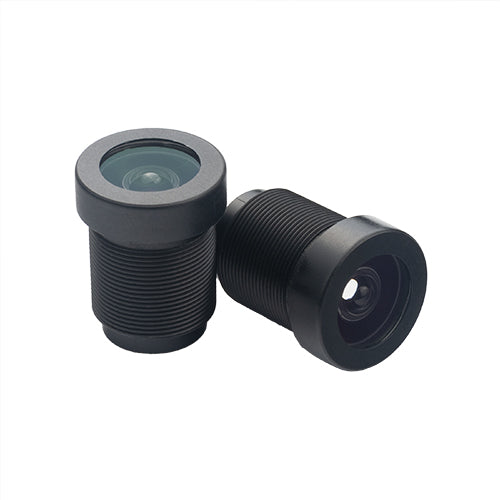

AD2536 Low Distortion Lens for 1/2.7 inch sensors, f=3.6mm, F1.8
Low-distortion lens are generally designed with aspheric surfaces, which have the characteristics of high definition and very low optical distortion.
Alaud has a series of low-distortion lenses. The products are designed to meet the requirements of low-distortion and high-definition imaging for a large field of view in some specific scenarios, such as scanning recognition, industrial recognition, face recognition, UAV and other consumer electronic products.
The low-distortion lens AD2536 from Alaud is compatible with board cameras over 5MP that on 1/2.7" format sensors. This lens has a 3.6mm focal length and delivers a 81.5° horizontal field of view.
Optical Specifications
|
Alaud low distortion lens AD2536 |
|
|
Description |
low distortion lens |
|
Imager Format |
1/2.7" |
|
Focal Length |
3.6mm |
|
Relative Aperture (F/#) |
1.8 |
|
Max Image Circle |
6.6mm |
|
Horizontal Field of View: |
81.5° |
|
TTL |
23.25mm |
|
Chief Ray Angle |
9.85° |
|
IR cut filter |
Optional |
Key Features
• High definition, low distortion lens
• 81.5° HFOV
• Compatible with 1/4"-1/2.7" format sensors
• 3.6mm fixed focal length
• Compact size
Applications
• QR code scanner
• Passport reader
• Face identification
• Document scanner
• Barcode scanner
