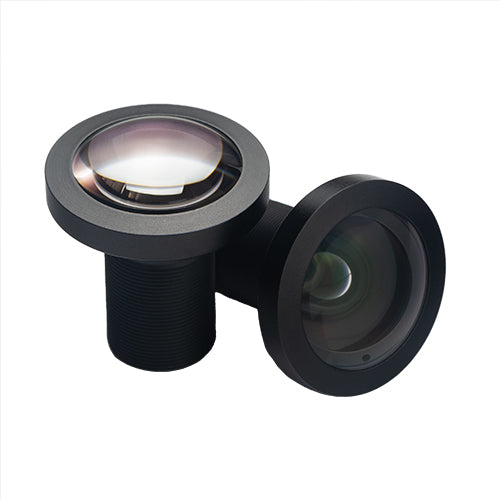

AD2554 Low Distortion Lens for 1/2.5 inch sensors, f=5.41mm, F2.55
Low-distortion lens are generally designed with aspheric surfaces, which have the characteristics of high definition and very low optical distortion.
Alaud has a series of low-distortion lenses. The products are designed to meet the requirements of low-distortion and high-definition imaging for a large field of view in some specific scenarios, such as scanning recognition, industrial recognition, face recognition, UAV and other consumer electronic products.
The low-distortion lens AD2554 from Alaud is compatible with board cameras over 2MP that on 1/2.5" format sensors. This lens has a 5.41mm focal length and delivers a 57.5° horizontal field of view.
Optical Specifications
|
Alaud M12 lens kit AD2554 |
|
|
Description |
M12 lens kit (low distortion) |
|
Imager Format |
1/2.5" |
|
Focal Length |
5.41mm |
|
Relative Aperture (F/#) |
2.55 |
|
Max Image Height |
7.5mm |
|
Horizontal Field of View: |
57.5° |
|
TTL |
30.94mm |
|
Chief Ray Angle |
2.54° |
|
IR cut filter |
Optional |
• High definition, low distortion lens
• 57.5° HFOV
• Compatible with 1/4"-1/2.5" format sensors
• 5.41mm fixed focal length
• Compact size
Applications
• Document reader
• Face detection
• Passport reader
• QR code scanner
• Barcode scanner
