AB04010MG 2 Megapixel Lens for 1/2.7 inch sensors, f=4mm, F1.0 Super Starlight
Megapixel lens, also known as high-definition lens, refers to a lens with a resolution of 720P and above. Alaud's megapixel lens series covers focal lengths from 2mm to 25mm, supports resolution up to 20MP, with clear images, high color reproduction, and rich image details. The lens has a compact design and excellent optical performance. Mainly used in security monitoring, smart home, sports DV, smart city, IoT and other fields.

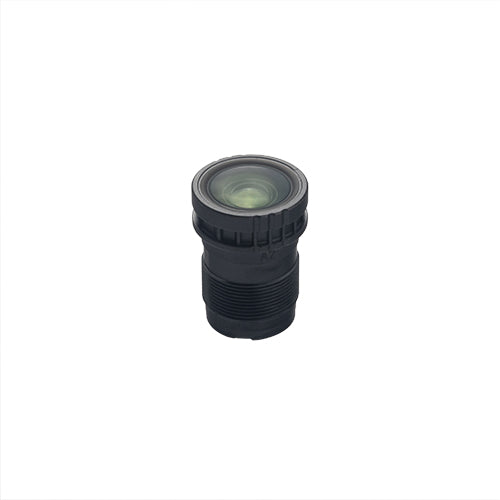

The S-mount megapixel lens AB04010MG from Alaud is compatible with board cameras over 2MP. This megapixel lens has a 4.00mm focal length and delivers a 88.6° horizontal field of view.
Optical Specifications
|
Alaud 4mm cctv lens AB04010MG |
|
|
Description |
4mm cctv lens |
|
Imager Format |
1/2.7" |
|
Focal Length |
4.00mm |
|
Relative Aperture (F/#) |
1.0 |
|
Max Image Height |
7.0mm |
|
Horizontal Field of View |
88.6° |
|
TTL |
22.61mm |
|
Chief Ray Angle |
14.0° |
|
IR cut filter |
Optional |
Key Features
• Sharp image quality from center to edge
• 4.00mm fixed focal length
• 88.6° HFOV
• Compatible with 1/4"-1/2.7" format sensors
• Compact size
• Superior low light performance: F1.0 aperture
Applications
• IP Cam
• Webcam
• Baby cam
• Pet cam
• DVR
